Fitness
|
|
LCD Series
|
|

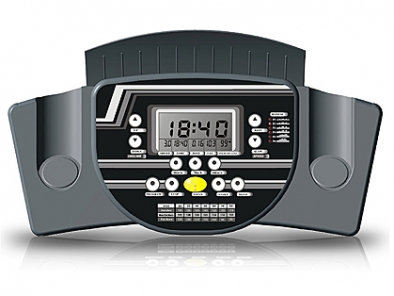

ALT-2130
|
|
|
Account For Products
Console Display: LCD
Console Readout: Speed, Incline, Pulse, Time, Distance, Calories, ODOMETER
Workout Profile: Manual, Program × 5, 3 Quick Speed Key
Speed: 0.8~20KPH
Incline: Level 0~16
PCB Dimension: 155mm(L) × 280mm(W)
|
|

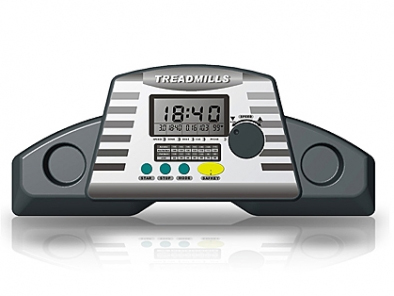

ALT-2131
|
|
|
Account For Products
Console Display: LCD
Console Readout: Speed, Pulse, Time, Distance, Calories, Rotary Quick Speed Key
Workout Profile: Scan, Manual, Rotary Quick Speed Key
Speed: 0.8~20KPH
PCB Dimension: 163mm(L) × 208mm(W)
|
|

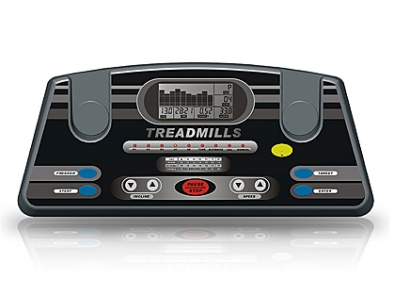

ALT-2132
|
|
|
Account For Products
Console Display: LCD
Console Readout: Speed, Incline, Pulse, Time, Distance, Calories, ODOMETER
Workout Profile: Manual, Program*3, User × 2, Laps
Speed: 0.8~16KPH
Incline: Level 0~12
PCB Dimension: Main Board - 155mm(L) × 240mm(W)
Keyboard - 47mm(L) × 430mm(W)
|
|

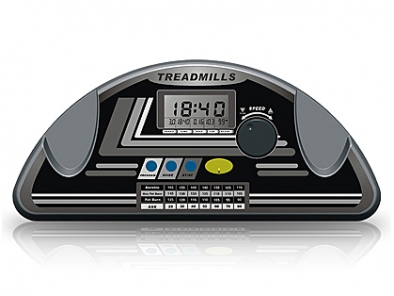

ALT-2133
|
|
|
Account For Products
Console Display: LCD
Console Readout: Speed, Pulse, Time, Distance, Calories, Rotary Quick Speed Key
Workout Profile: Manual, Program × 5
Speed: 0.8~20KPH
PCB Dimension: 163mm(L) × 208mm(W)
|
|
LED Series
|
|

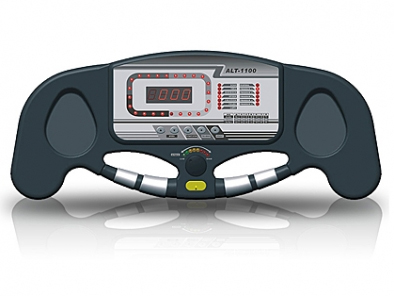

ALT-1100
|
|
|
Account For Products
Console Display: 1 Window LED within 400m laps
Console Readout: Time, Speed, Distance, Calories, Pulse, Laps
Workout Profile: Manual, Program × 5, Laps, Rotary Quick Speed Key
Speed: 0.8~10KPH or 0.8~20KPH (0.5~6.0MPH or 0.5~12.4MPH)
Heart Rate Sensor: Hand Grip
PCB Dimension: 123mm(L) × 254mm(W)
|
|

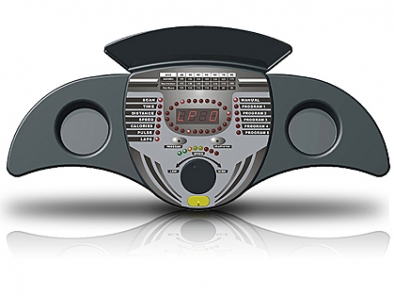

ALT-1112
|
|
|
Account For Products
Console Display: 1 Window LED within 400m laps
Console Readout: Time, Speed, Distance, Calories, Pulse, Laps
Workout Profile: Manual, Program × 5, Laps, Rotary Quick Speed Key
Speed: 0.8~10KPH or 0.8~20KPH (0.5~6.0MPH or 0.5~12.4MPH)
PCB Dimension: 128mm(L) × 172mm(W)
|
|

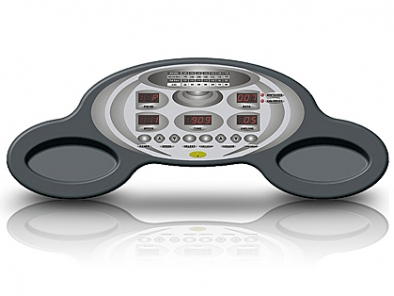

ALT-1510
|
|
|
Account For Products
Console Display: 5 Windows LED
Console Readout: Time, Speed, Incline, Distance, Calories, Pulse
Workout Profile: Manual, Program × 6, User × 2
Speed: 0.8~10KPH or 0.8~20KPH(0.5~6.0MPH or 0.5~12MPH)
Incline: Level 0~15
PCB Dimension: 99mm(L) × 247mm(W)
|
|

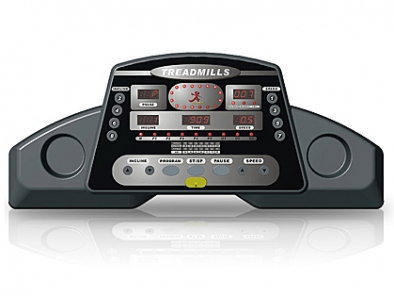

ALT-1550
|
|
|
Account For Products
Console Display: 5 Windows LED within 400m laps
Console Readout: Speed, Incline, Pulse, Time, Distance, Calories, Laps
Workout Profile: Manual, Program × 5, User × 2, H.R.C x 1, 4 Quick Speed Key, 4 Quick Incline Key
Speed: 0.8~16KPH (0.5~10MPH)
Incline: Level 0~15
PCB Dimension: Main Board - 109mm(L) × 243mm(W)
Keyboard - 36.9mm(L) × 300mm(W)
|
|

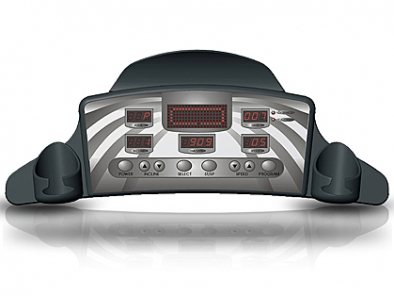

ALT-1600
|
|
|
Account For Products
Console Display: 8 × 20 DOTS Matrix & 5 Windows LED
Console Readout: Time, Laps, Speed, Incline, Distance, Calories, Pulse, ODOMETER
Workout Profile: Manual, Pace, Program*6, User × 2, H.R.C. × 2
Speed: 0.8~10KPH or 0.8~20KPH(0.5~6.0MPH or 0.5~12MPH)
Incline: Level 0~15
PCB Dimension: 99mm(L) × 247mm(W)
|
|

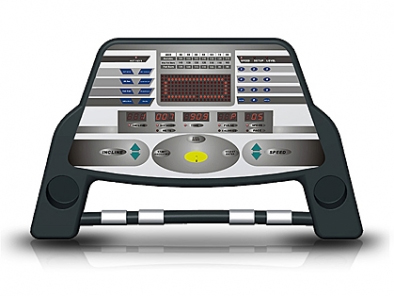

ALT-1666
|
|
|
Account For Products
Console Display: 8 × 20 DOTS Matrix & 5 Windows LED
Console Readout: Speed, Pace, Pulse, Time Remained, Distance, Calories, Incline, METs, ODOMETER
Workout Profile: Manual, 5K Run, Cal Goal, 30 Min Walk, Hill Interval, Speed, Interval, Weight Loss, Cardio
Speed: 0.8~20KPH(0.5~12MPH)
Incline: Level 0~15
PCB Dimension: 269mm(L) × 349mm(W)
|
|

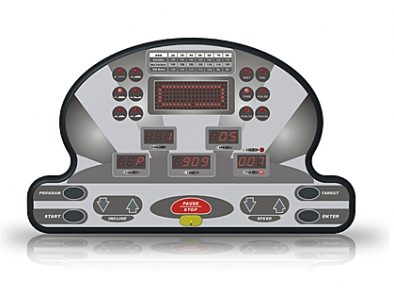

ALT-1668
|
|
|
Account For Products
Console Display: 8 × 20 DOTS Matrix & 5 Windows LED
Console Readout: Speed, Incline, Pulse, Time, Distance, Calories, ODOMETER
Workout Profile: Manual, Program × 5, User × 3, H.R.C.
Speed: 0.8~20KPH(0.5~12MPH)
Incline: Level 0~12
PCB Dimension: Main Board - 155mm(L) × 240mm(W)
Keyboard - 47mm(L) × 430mm(W)
|
|
Control System
|
|
|
ALATECH controllers are packed with functions to make the innovative, reliable treadmill system available. Compare the price and features, we're confident that NO treadmill should ever be build without one.
MODEL/FUNCTION
|
Horse Power
|
Input Voltage
|
Dimensions
|
Incline
|
SMART-PACE™
|
Auto-Shutdown
|
ALT-6000A
|
~1.5HP
|
110V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6000A
|
~1.5HP
|
220V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6010A
|
~1.0HP
|
110V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6010B
|
~1.0HP
|
220V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6011A
|
~1.25HP
|
110V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6011B
|
~1.25HP
|
220V
|
140x140x70mm
|
×
|
×
|
×
|
ALT-6020A
|
~1.25HP
|
110V
|
140x140x70mm
|
○
|
×
|
×
|
ALT-6020B
|
~1.25HP
|
220V
|
140x140x70mm
|
○
|
×
|
×
|
ALT-6021A
|
~1.5HP
|
110V
|
140x140x70mm
|
○
|
×
|
×
|
ALT-6021B
|
~1.5HP
|
220V
|
140x140x70mm
|
○
|
×
|
×
|
ALT-6100A
|
~1.5HP
|
110V
|
200x140x70mm
|
○
|
×
|
×
|
ALT-6100B
|
~1.5HP
|
220V
|
200x140x70mm
|
○
|
×
|
×
|
ALT-6110A
|
~1.5HP
|
110V
|
200x140x70mm
|
○
|
○
|
○
|
ALT-6110B
|
~1.5HP
|
220V
|
200x140x70mm
|
○
|
○
|
○
|
ALT-6210A
|
~2.0HP
|
110V
|
200x140x70mm
|
○
|
○
|
○
|
ALT-6210B
|
~2.0HP
|
220V
|
200x140x70mm
|
○
|
○
|
○
|
ALT-6300A
|
~3.0HP
|
110V
|
200x140x70mm
|
○
|
×
|
×
|
ALT-6300B
|
~3.0HP
|
220V
|
200x140x70mm
|
○
|
×
|
×
|
ALT-6360A
|
~3.0HP
|
110V
|
200x140x70mm
|
○
|
○
|
○
|
ALT-6360B
|
~3.0HP
|
220V
|
200x140x70mm
|
○
|
○
|
○
|
‧ ALATECH Controllers Standard Features:
Static Protect – To protect controller from discharge by the static when tread belt is in action.
Power Transient Protect – To protect controller from unstable current and interrupts or other unexpected situations.
Run Away Protect – When controller gets burned and motor is out of control, it will auto shut-off power to protect user from possible injury.
Soft-start – Ensures smooth starting speed for longer motor lifetime and less harm on the user body.
Isolation Protect – Protect user from possible electric shock during contact.
Build-in Incline Motor Driver – All drivers and IC are build-in one compacted control board.
Incline Motor Protect – Designed to avoid incline and decline to action at the same time to cause possible motor short-circuit.
Incline Motor/Console Current Load Protect – When motor short-circuits, it will auto shut-off power to protect motor and console from burn out.
Motor Anti-lock Protect – During motor overloads or other abnormal actions, it will auto shut-off power to protect user and controller.
Current Limit – Sets current loading limit to protect motor from possible errors.
Dual PWM Mode/Speed Control – Using PWM control for speed and isolation protect.
Current Load Auto-Feedback Compensation – Ensure the speed of the motor at the balanced level for different loading.
CE&LVD Design – ALATECH controllers are designed with CE&LVD standards.
|
|
